Simply45 S45-1000 Cat5e UTP Unshielded Standard WE/SS 8P8C RJ45 Modular Plugs - 100-Piece Plastic Jar—
$45.95
The Story

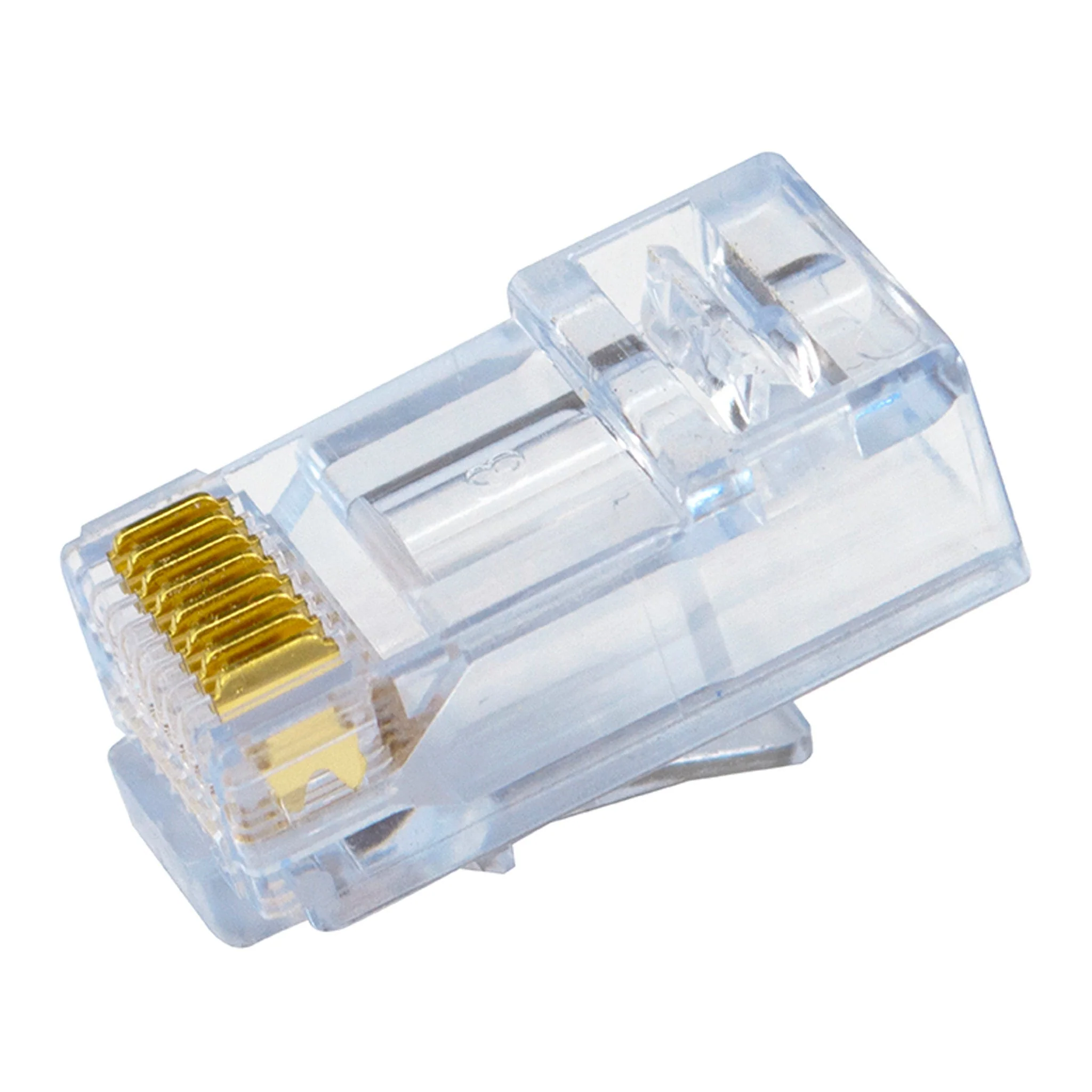

Simply45 S45-1000 CAT5e UTP Unshielded 8P8C Blue Tint RJ45 Modular Plugs 100-Piece Jar
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Single Piece Design. The S45-1000 is a single-piece unshielded Standard WE/SS RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.
Solid and Stranded LAN Cables. The S45-1000 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used for patch cords/leads. If your stranded unshielded LAN cable has a larger diameter than 6.5mm (0.255”), then our S45-1100 may be the right Standard WE/SS solution for you. We also have several options in our Pass-Through Product Line.
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Single Piece Design. The S45-1000 is a single-piece unshielded Standard WE/SS RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.
Solid and Stranded LAN Cables. The S45-1000 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used for patch cords/leads. If your stranded unshielded LAN cable has a larger diameter than 6.5mm (0.255”), then our S45-1100 may be the right Standard WE/SS solution for you. We also have several options in our Pass-Through Product Line.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Simply45 S45-1000 CAT5e UTP Unshielded 8P8C Blue Tint RJ45 Modular Plugs 100-Piece Jar
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Single Piece Design. The S45-1000 is a single-piece unshielded Standard WE/SS RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.
Solid and Stranded LAN Cables. The S45-1000 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used for patch cords/leads. If your stranded unshielded LAN cable has a larger diameter than 6.5mm (0.255”), then our S45-1100 may be the right Standard WE/SS solution for you. We also have several options in our Pass-Through Product Line.
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Single Piece Design. The S45-1000 is a single-piece unshielded Standard WE/SS RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.
Solid and Stranded LAN Cables. The S45-1000 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used for patch cords/leads. If your stranded unshielded LAN cable has a larger diameter than 6.5mm (0.255”), then our S45-1100 may be the right Standard WE/SS solution for you. We also have several options in our Pass-Through Product Line.
